Description

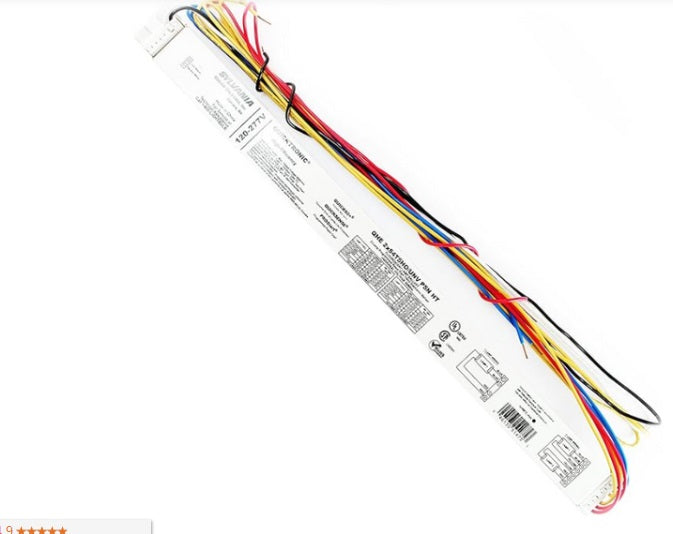

The QUICKTRONIC® PROStart® T5HO Electronic Ballast is engineered for superior energy efficiency and reliable performance across commercial, industrial, and institutional lighting applications. Designed for T5 High Output (HO) lamps, it delivers consistent lumen output with programmed rapid start technology that extends lamp life and optimizes performance.
This universal voltage (120-277V) ballast is compatible with multiple lamp types and offers flexibility for retrofit and new installations. With QUICKSENSE® end-of-lamp-life sensing, high power factor, low harmonic distortion, and a compact low-profile design, it is ideal for high bay, indirect, and cove lighting applications.
Key Features:
✅ Universal Voltage (120-277V) – Eliminates 'wrong voltage' errors and simplifies inventory.
✅ High Efficiency – Achieves over 90% system efficiency, reducing energy costs.
✅ Programmed Rapid Start – Extends lamp life and ensures consistent, reliable ignition.
✅ QUICKSENSE® Technology – Protects against lamp overheating and ensures safe shutdowns.
✅ Wide Lamp Compatibility – Supports 54W, 39W, 24W T5HO, and more.
✅ Low THD & High Power Factor – THD <10%, Power Factor >98%.
✅ Cold Temperature Start – Operates in environments as low as -20°F (-29°C).
✅ UL, FCC, RoHS Certified – Meets rigorous safety and environmental standards.
✅ 5-Year Warranty – Durable and reliable for long-term installations.
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Electronic, Programmed Rapid Start |
| Input Voltage | 120-277V |
| Lamp Types Supported | FP54T5HO, FP39T5HO, FP24T5HO, and more |
| Ballast Factor | 1.00 (Varies by lamp type) |
| Min Starting Temperature | -20°F (-29°C) |
| Input Frequency | 50/60Hz |
| THD | <10% |
| Power Factor | >98% |
| Voltage Range | 108-305V |
| Certifications | UL, FCC, RoHS, ANSI C62.41 |
| Sound Rating | A |
| Mounting Dimensions | Varies by model (see dimensions section) |
| Warranty | 5-Year Limited Warranty |
✅ Performance Summary for Key Lamp Types:
| Lamp Type | No. of Lamps | Ballast Factor | Initial Lumens | Mean Lumens | Input Power (W) | System Efficacy (lm/W) |
|---|---|---|---|---|---|---|
| FP54T5HO | 2 | 1.00 | 10,000 | 9300 | 119 | 86 |
| F54/50W/ES | 2 | 1.02 | 10,200 | 9485 | 112 | 94 |
| F54/47W/ES | 2 | 1.02 | 9335 | 8680 | 105 | 91 |
| F39T5HO | 2 | 1.00 | 7000 | 6510 | 83 | 86 |
| F24T5HO | 2 | 1.00 | 4000 | 3720 | 54 | 75 |
📐 Dimensions & Installation:
-
QHE 2x54T5HO UNV PSN HT EB:
- Overall: 16.73" L x 1.18" W x 1.00" H
- Mounting: 16.34" (415mm)
-
QHE 2x3924T5HO UNV PSN EB:
- Overall: 14.17" L x 1.18" W x 0.87" H
- Mounting: 13.74" (349mm)
-
Installation Notes:
- Ground ballast case.
- Use 18AWG solid copper wire for connections.
- Remote mounting supported up to 18 feet for red leads and 10 feet for blue leads.
📌 Ideal for Applications:
- Commercial & Retail Lighting
- Hospitality & Institutional Installations
- Industrial High Bay Lighting
- Surface Mount & Indirect Lighting
- New Construction and Retrofits
⚠️ Important Installation & Return Notice:
- Check Compatibility: Ensure the ballast is compatible with your fixture and lamp type.
- Returns Policy: Installed ballasts are non-returnable, as installation can impact product integrity. Please verify the compatibility before installation.
