Description

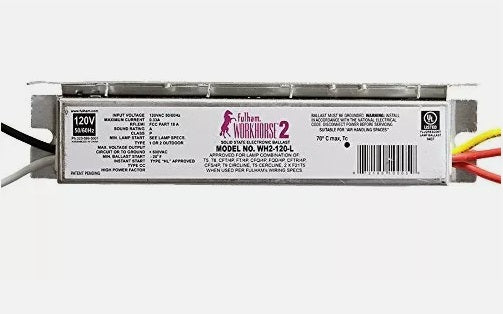

Ensure reliable and efficient lighting with the Instant Start Fluorescent Electronic Ballast, designed for a wide range of lamp types. This solid-state electronic ballast operates on 120VAC, 60Hz and supports multiple lamp configurations, including T8, T5, and CFL lamps.
Ideal for both commercial and residential applications, this ballast features instant start capability, a high power factor (>0.9), and is cUL Listed Class P for safety assurance. With a 5-year warranty and compatibility across a variety of lamp types, it's the perfect solution for energy-efficient lighting retrofits.
🔑 Key Features:
✅ Multi-Lamp Compatibility – Supports a variety of lamp types, including T8, T5, CFL, and circular fluorescent lamps
✅ Solid-State Electronic Design – Ensures efficient and reliable operation
✅ Instant Start Technology – Immediate light output with reduced flicker
✅ High Power Factor (>0.9) – Delivers consistent energy efficiency
✅ Low Total Harmonic Distortion (THD < 38.7%) – Ensures stable performance
✅ FCC Part 18-A Compliant – Reduces EMI/RFI interference
✅ Thermal Protection – Rated for a maximum case temperature of 70°C
✅ Wide Temperature Range – Operates down to -30°C (-20°F)
✅ 5-Year Warranty – Guaranteed performance and durability
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Instant Start, Solid-State |
| Input Voltage | 120VAC ±10%, 60Hz |
| Power Factor | >0.9 |
| Total Harmonic Distortion (THD) | <38.7% |
| Max Case Temperature | 70°C (158°F) |
| Sound Rating | A |
| EMI/RFI Compliance | FCC Part 18-A |
| Certifications | cUL Listed, Class P |
| Warranty | 5 Years from the date of manufacture |
✅ Compatible Lamp Types & Performance
| Lamp Type | Lamps Operated | Input Wattage | Line Current (A) | Ballast Factor | Efficacy Factor |
|---|---|---|---|---|---|
| F32T8 | 1 | 38W | 0.33 | 1.3 | 3.3 |
| F25T8 | 1 | 29W | 0.25 | 1.3 | 4.5 |
| F17T8 | 1 | 21W | 0.28 | 1.3 | 6.3 |
| F15T8 | 1 | 17W | 0.15 | 1.0 | 6.3 |
| CFTR26W | 1 | 26W | 0.23 | 0.9 | 3.6 |
| CFTR32W | 1 | 31W | 0.27 | 0.9 | 2.8 |
| F14T5 | 1 | 17W | 0.15 | 1.1 | 6.3 |
| CFQ18W | 1 | 17W | 0.15 | 0.9 | 5.1 |
| CFQ18W | 2 | 25W | 0.22 | 0.6 | 2.6 |
| F28T5 | 1 | 30W | 0.26 | 0.9 | 3.1 |
Ideal for:
- Commercial and Industrial Lighting – Ideal for office spaces, warehouses, and retail environments
- Residential Installations – Suitable for basements, garages, and utility rooms
- Retrofit Projects – Perfect for upgrading older lighting systems to more efficient solutions
- Cold Start Environments – Reliable performance down to -30°C (-20°F)
⚠️ Important Installation & Return Notice:
- Check Compatibility: Ensure the ballast is compatible with your lamp type and fixture.
- Returns Policy: Installed ballasts cannot be returned, as installation may compromise the product. Please confirm specifications before installation to avoid issues.
