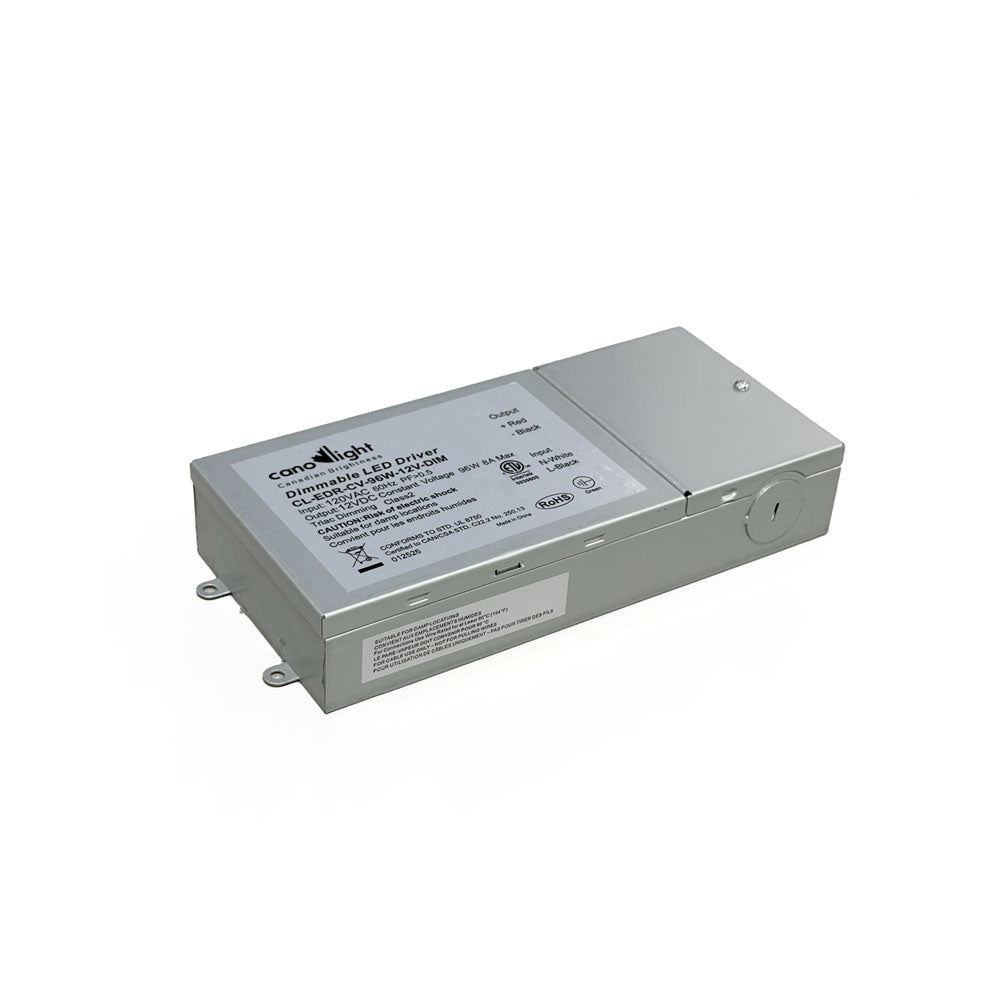

12V Dimmable LED Driver w/ Integrated Junction Box, 96W, TRIAC, Class 2, 120V In / 12VDC Out (Dry/Damp) — CL-EDR-CV-96W-12V-DIM

At a glance

A solid 12V constant-voltage driver that dims on standard wall dimmers and has built-in knockouts + a safe wiring compartment — so your connections don’t end up free-floating.

You need this if

• You’re powering 12V LED strip / modules and need real output (up to 96W)

• You want TRIAC dimming (typical residential dimmers)

• You want a cleaner install with integrated junction box / knockouts

• You need a driver rated for dry or damp locations

• You want Class 2 output (common requirement for low-voltage lighting installs)

You don’t need this if

• You need 24V (this is 12V only)

• You need 0–10V dimming (this is TRIAC)

• Your load is bigger than 96W (you’ll need a larger driver)

Tech Specs

• Model: CL-EDR-CV-96W-12V-DIM

• SKU: CL-EDR-CV-96W-12V-DIM

• Type: Constant Voltage LED Driver (12V)

• Input: 120 VAC, 60Hz

• Output: 12 VDC

• Max Power: 96W

• Dimming: TRIAC dimmable

• Class: Class 2

• Location Rating: Dry & Damp

• Install feature: Integrated wiring compartment with knockouts (built-in “junction box” style housing)

Compatibility notes

• Keep total load ≤ 96W (ideally leave headroom, ex: ~80–85W max continuous).

• TRIAC dimming works best with dimmable 12V constant-voltage LED loads and a compatible dimmer.
